Description

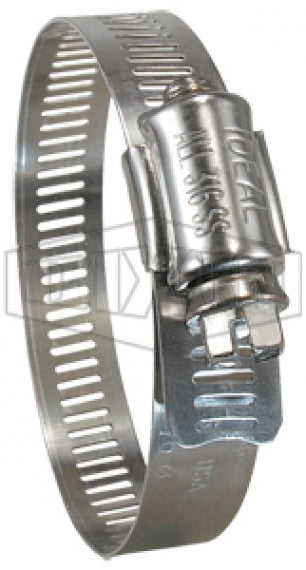

clamp worm gear MGC40 by Dixon Valve | Style MGC | Marine Grade Worm Gear ClampFeatures: Screw design: 5 16" slotted hex head. Three piece construction. Suggested installation torque 30 42 in. lbs.; maximum recommended torque 60 in. lbs. Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp. Materials: 316 Marine Grade Stainless Steel: band, screw, housing. Approval: Clamp meets SAEJ1508 which supercedes Mil Spec
| Features: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Approval: | |||
|
| Part Number | Band Width | Hose OD | |
|---|---|---|---|
| From | To | ||
| MGC6 | 1/2" | 3/8" | 7/8" |
| MGC8 | 1/2" | 7/16" | 1" |
| MGC10 | 1/2" | 9/16" | 1-1/16" |
| MGC12 | 1/2" | 9/16" | 1-5/16" |
| MGC16 | 1/2" | 11/16" | 1-1/2" |
| MGC20 | 1/2" | 3/4" | 1-3/4" |
| MGC24 | 1/2" | 1-1/16" | 2" |
| MGC28 | 1/2" | 1-5/16" | 2-1/4" |
| MGC32 | 1/2" | 1-9/16" | 2-1/2" |
| MGC36 | 1/2" | 1-13/16" | 2-3/4" |
| MGC40 | 1/2" | 2-11/16" | 3" |
| MGC44 | 1/2" | 2-5/16" | 3-1/4" |
| MGC48 | 1/2" | 2-9/16" | 3-1/2" |
| MGC52 | 1/2" | 1-13/16" | 3-3/4" |
| MGC56 | 1/2" | 3-1/16" | 4" |
| MGC64 | 1/2" | 2-1/2" | 4-1/2" |
| MGC72 | 1/2" | 3-1/16" | 5" |
| MGC80 | 1/2" | 3-1/2" | 5-1/2" |
| MGC88 | 1/2" | 4-3/32" | 6" |
| MGC96 | 1/2" | 4-1/2" | 6-1/2" |
| MGC104 | 1/2" | 5" | 7" |
